Small Package
Big Capabilities

featuring
   Analog/Signature Peak Output


                                   Proforce Analog Signature Peak Output I/O Module























Two Year Warranty

Low Cost - Small Size - Disposable - Multifunctional



Our new, low cost small size (100mm x 80mm x 25mm) Proforce Analog Signature/Peak I/O Module with Peak Indicating is D-Rail mounted and works in conjunction with any manufactures PLC or Industrial PC. Proforce Analog/Peak  I/O Module is used for one (1) channel of Load Monitoring. They can work with any press tonnages or press speeds.

The Proforce Analog/Peak offers the ability to customize Load Monitoring requirements by adapting customized software programs. They can program load trip points for both Press and Dies.  Hidden menus are easily created to monitor press overload and die overloads for warranty purposes or other information that may be required.

The Analog of the Proforce Analog/Peak  feeds directly into the PLC or Industrial PC  A to D Converter Board.  The output signal is 0 - 10 Volts.  - 24 Volt input.

All types of IMCO's Piezoelectric Transducers are used with the Proforce Plus I/O Module.  Column mounted, Pitman mounted and "Satellite" In-Die Transducers offer suitable mounting choices for the Proforce Analog/Peak.

A detailed pictorial, Installation and Operating Manual is included with each Proforce.



FEATURES

 COMPATIBLE WITH ANY MANUFACTURES PLC OR PC
 SIMULTANEOUSLY READS BOTH THE ANALOG TRACKING AND PEAK HIGH
 EACH MODULE OPERATE INDEPENDENTLY OF OTHER CHANNELS 0 - 10 VOLTS
 IMCO'S "ROCK SOLID " LINEAR TECHNOLOGY  FOR TEMPERATURE AND NOISE
     STABILITY
 D- RAIL MOUNTED
 CUSTOMIZE PRODUCTION REQUIREMENTS BY CREATING ANY LOAD MONITORING
     FEATURES
 SMALL - SLEEK - COMPACT DESIGN
 LOW COST - THROW AWAY CONCEPT
 FUNCTIONAL WITH ALL TYPES OF IMCO PIEZOELECTRIC TRANSDUCERS
 CAM SELECT MODULE FOR DOUBLE ACTION PRESS - TURNS PIEZOELECTRIC
    TRANSDUCERS ON AND OFF - optional



Proforce Analog Signature Peak Output I/O Module dimension diagram



Ask Your Press Builder To Mount An IMCO PROFORCE Right In The Control
Panel Of Your New Press Before It Leaves The Factory

 CONTROL PANEL D-RAIL MOUNTING

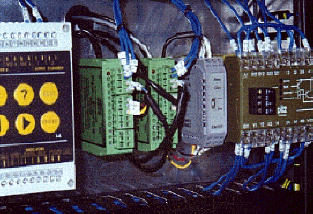

Proforce Analog Signature Peak Output I/O Module Mounted in Control Panel

 Proforce Analog Signature Peak Output I/O Module Mounted in Control Panel


Proforce Analog Signature Peak Output I/O Module Mounted in Control Panel







Etchells Multi Forge Press Engalnd



Proforce I/O Modules are shown in the Control Panel of an ETCHELLS MULTIFORGE PRESS,  Darlaston, Wednesbury,
West Midlands - England

click on photo for information on Etchells Press

Automatic MF 30/500 Horizontal Forging Machine
